Plate from Einstein Turm Solar Plates
Preview (Level 1)
Preview (Level 2)
| Applause ID: | dr.3s/plates/6_74488 |
| Archive: | Einstein Turm Solar Plates |
| Plate number in archive: | 0016 |
| Institute: | Leibniz-Institut für Astrophysik Potsdam (AIP) |
| Logbook entry: | |
| Plate format: | 15x15 cm |

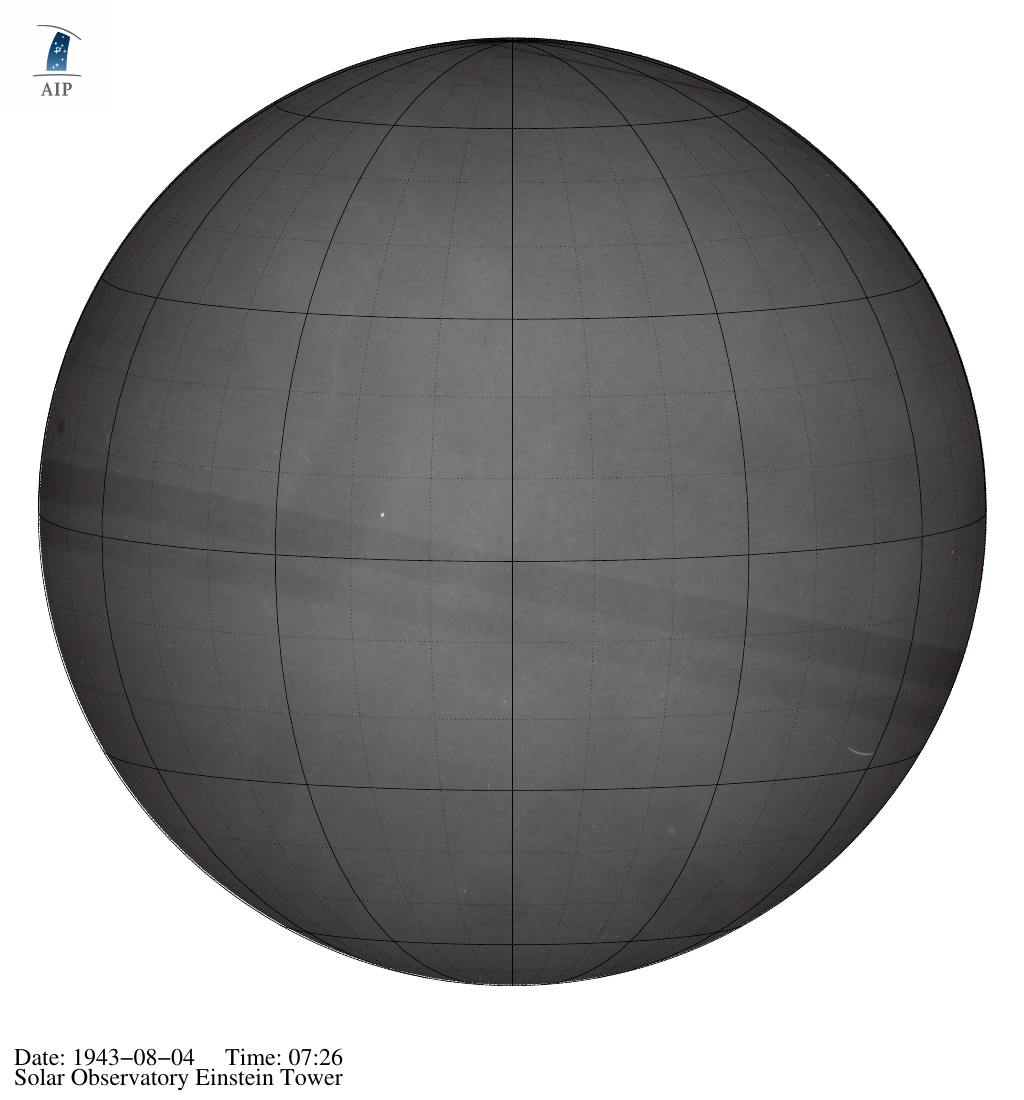

| Level 1 file: | soet_white_fl_19430804_072600.fts |

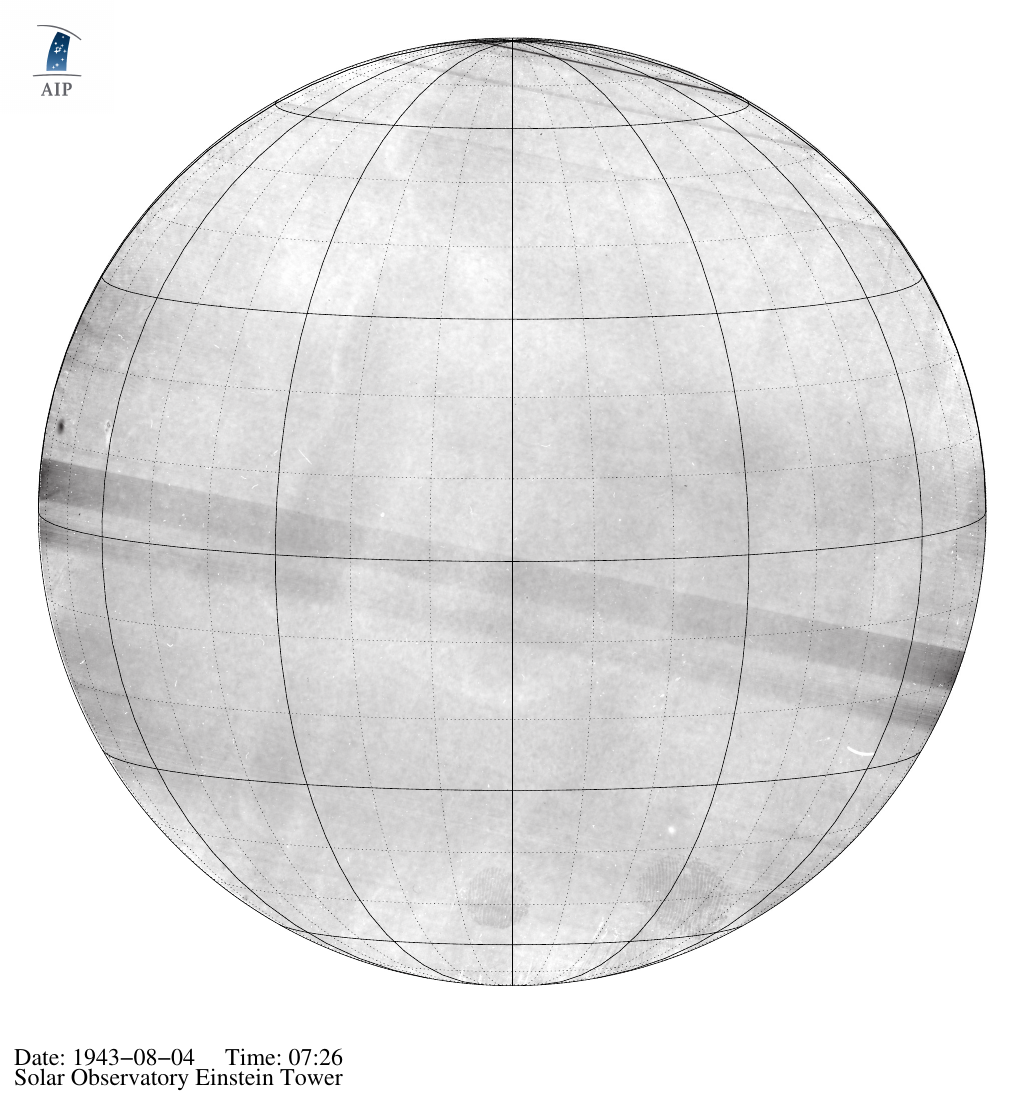

| Level 2 file: | soet_white_fr_19430804_072600.fts |
| UT date and time of the observation: | 1943-08-04 07:26:00 |
| Number of exposures: | 1 |
| Observatory name: | Solar Observatory Einstein Tower |
| Observatory site name: | Potsdam, Germany |
| East longitude of the observing site: | 13.063855 deg |
| Latitude of the observing site: | 52.37875 deg |
| Elevation of the observatory site: | 87.0 |
| Clear aperture of the telescope OTA: | 0.6 m |
| Focal length of the telescope OTA: | 14.0 m |
| Plate scale of the telescope OTA: | 14.73 arcsec/mm |
| Instrument name: | Scanning Slit Camera |
| Observation filter: | Schott Glas |
| Observation method: | |
| Air mass: | 1.796 |
| Filename scan (Level 0): | soet_white_fi_19430804_072600.fts |
| Length of data axis 1: | 7086 |
| Length of data axis 2: | 7086 |
| Min. value in the image: | |
| Max. value in the image: | |
| Scanner name: | Epson Perfection 4990 |
| Scanner software: | Epson Scan |
| Scanner gamma value: | |
| Scanner focus: | |
| Resolution of axis 1: | 1200 dpi |
| Resolution of axis 2: | 1200 dpi |
| Pixel size along axis 1: | 21.1685 um |
| Pixel size along axis 2: | 21.1685 um |
| Type of photometric step-wedge: | |
| Scan date and time: | July 3, 2009, 5:29 p.m. |
| Author of the scan: | J. Rendtel, C. Denker, & P. S. Pal |
| Notes about the scan: | |
| Institute responsible for the scan: | Leibniz Institute for Astrophysics Potsdam (AIP) |
Digital object identifier
You can use the following DOI to cite this photographic plate in a publication:
License
This photographic plate is published under the CC0 1.0 Universal (CC0 1.0).
