Plate from Small Schmidt Camera (Potsdam)

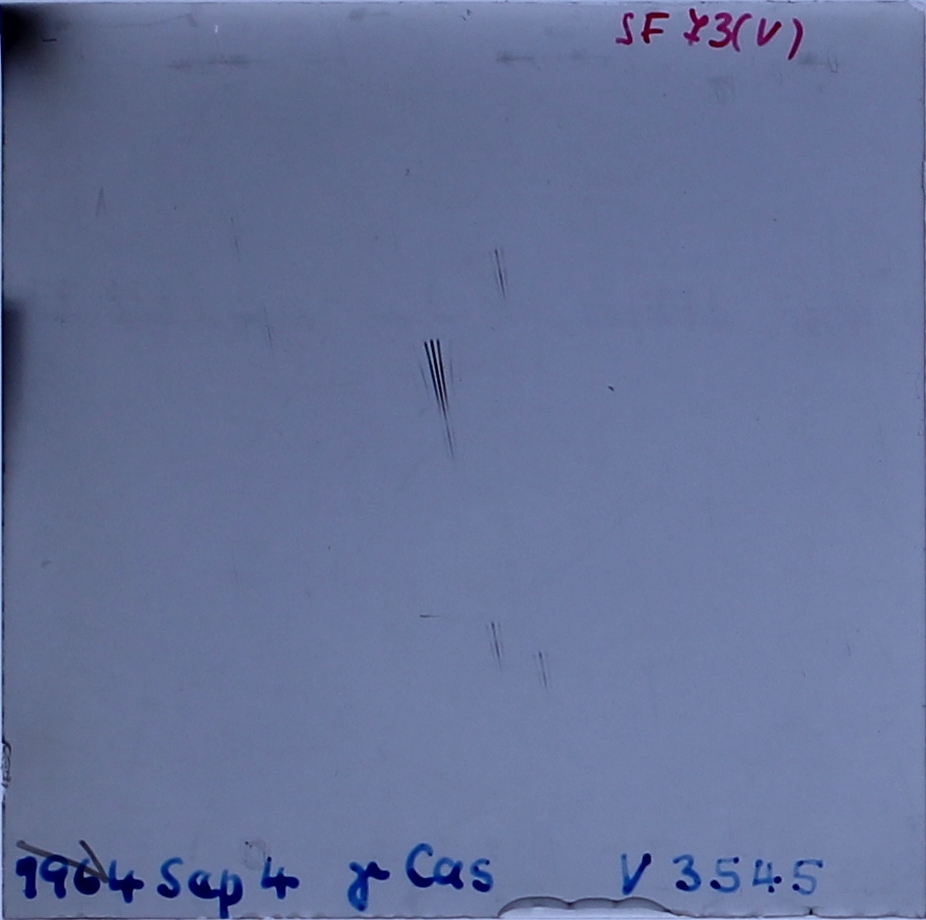

Preview
Envelope
(link)
| Applause ID: | dr.3/plates/4_67130 |
| Archive: | Small Schmidt Camera (Potsdam) |
| Plate number in archive: | 73 |
| Institute: | Leibniz-Institut für Astrophysik Potsdam (AIP) |
| Observer name: | H. Strohbusch |
| Observer notes: | 2.25 mag brightness and B0ne spectral class of gamma Cas, 10 minutes development with Final at temperature +20C, spectrum broadened with fine tuning of alpha by 1 min in both directions |
| Miscellaneous notes: | comment: different plate number SF73 (V) on the plate, exposure start time 10 minutes earlier in the logbook |
| Bibcode of related paper: | |
| Plate series: | |
| Dispersion: | |
| Plate development information: | |
| Plate quality: | |
| Plate notes: | |
| Plate format: | 6x7 cm |
| Emulsion: | Agfa Astro Spezial Ortho V3545 |
| Original recorded date: | 1964-09-04 |
| Number of exposures: | 1 |
| Observatory name: | Astrophysikalische Observatorium Potsdam |
| Observatory site name: | Potsdam-Telegrafenberg |
| East longitude of the observing site: | 13.06417 deg |
| Latitude of the observing site: | 52.38056 deg |
| Elevation of the observatory site: | 107.0 m |
| Clear aperture of the telescope: | 0.25 m |
| Focal length of the telescope: | 0.751 m |
| Plate scale of the telescope: | 275.0 arcsec/mm |
| Instrument name: | |
| Observation filter: | |
| Observation method code (following WFPDB): | |
| Observation prism used: | |
| Used grating: | |
| Air temperature: | 20.5 |
| Calmness (seeing conditions): | |
| Sharpness: | |
| Transparency: | |
| Notes on sky conditions: | good air, transparency: moderate |
Digital object identifier
You can use the following DOI to cite this photographic plate in a publication:
License
This photographic plate is published under the CC0 1.0 Universal (CC0 1.0).
