Plate from Carte du Ciel (Potsdam)

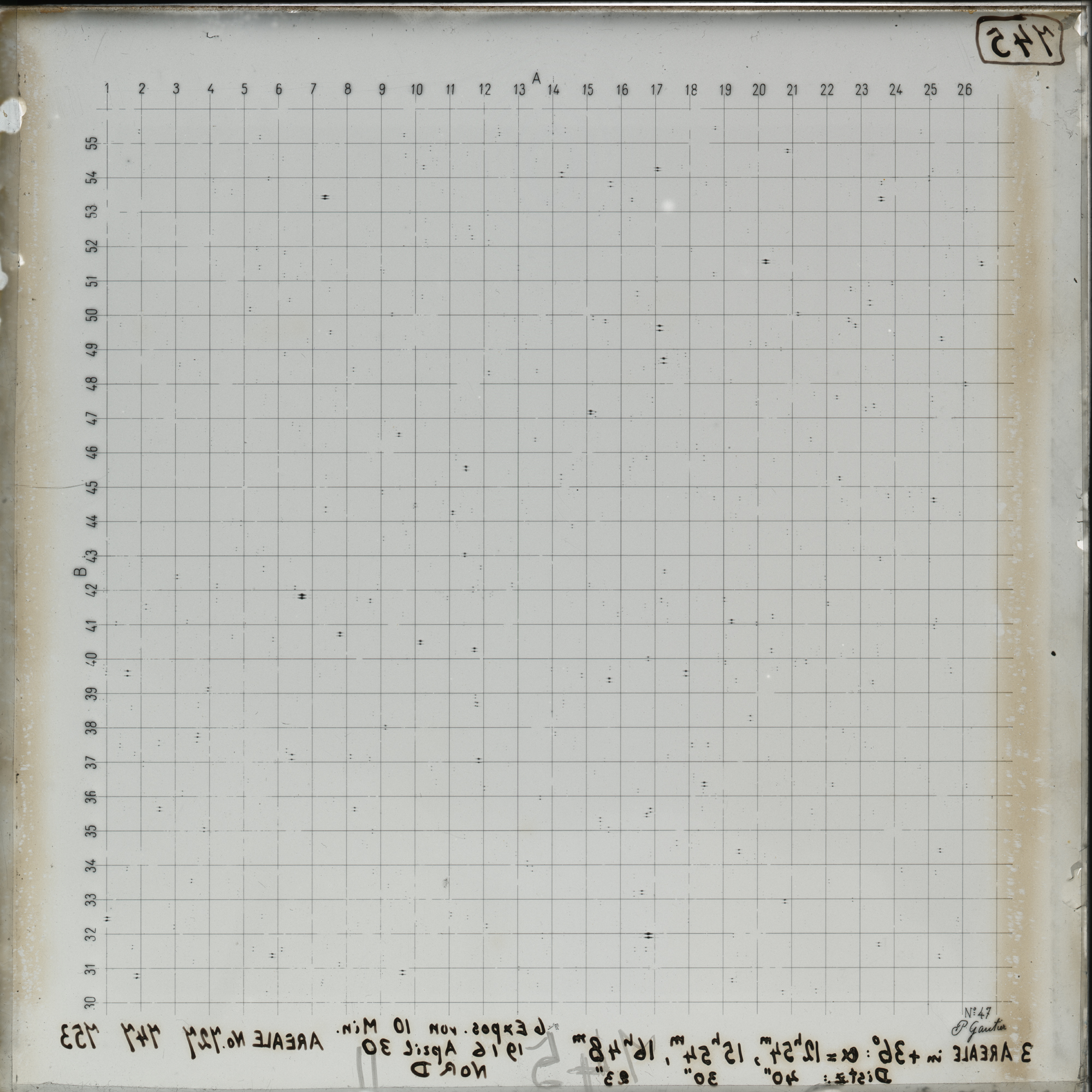

Preview
| Applause ID: | dr.3/plates/2_51233 |
| Archive: | Carte du Ciel (Potsdam) |
| Plate number in archive: | 745 |
| Institute: | Leibniz-Institut für Astrophysik Potsdam (AIP) |
| Observer name: | O. Birck |
| Observer notes: | |
| Miscellaneous notes: | Areas No.727(12h54m+36deg),No.747(15h54m+36deg),No.753(16h48m+36deg); Distance between the respective area images: 40\,30\,23\; With objective grid; Old Gautier grid used. |
| Bibcode of related paper: | |
| Plate series: | Carte du Ciel |
| Dispersion: | |
| Plate development information: | |
| Plate quality: | |
| Plate notes: | |
| Plate format: | 16x16 cm |
| Emulsion: |
| Original recorded date: | 1916-04-30 |
| Number of exposures: | 2 |
| Observatory name: | Astrophysikalische Observatorium Potsdam |
| Observatory site name: | Potsdam-Telegrafenberg |
| East longitude of the observing site: | 13.06417 deg |
| Latitude of the observing site: | 52.38056 deg |
| Elevation of the observatory site: | 107.0 m |
| Clear aperture of the telescope: | 0.325 m |
| Focal length of the telescope: | 3.43 m |
| Plate scale of the telescope: | 60.0 arcsec/mm |
| Instrument name: | |
| Observation filter: | None |
| Observation method code (following WFPDB): | |
| Observation prism used: | |
| Used grating: | |
| Air temperature: | |
| Calmness (seeing conditions): | |
| Sharpness: | |
| Transparency: | |
| Notes on sky conditions: |
Digital object identifier
You can use the following DOI to cite this photographic plate in a publication:
License
This photographic plate is published under the CC0 1.0 Universal (CC0 1.0).
