Plate from Doppel-Reflektor (Hamburg)

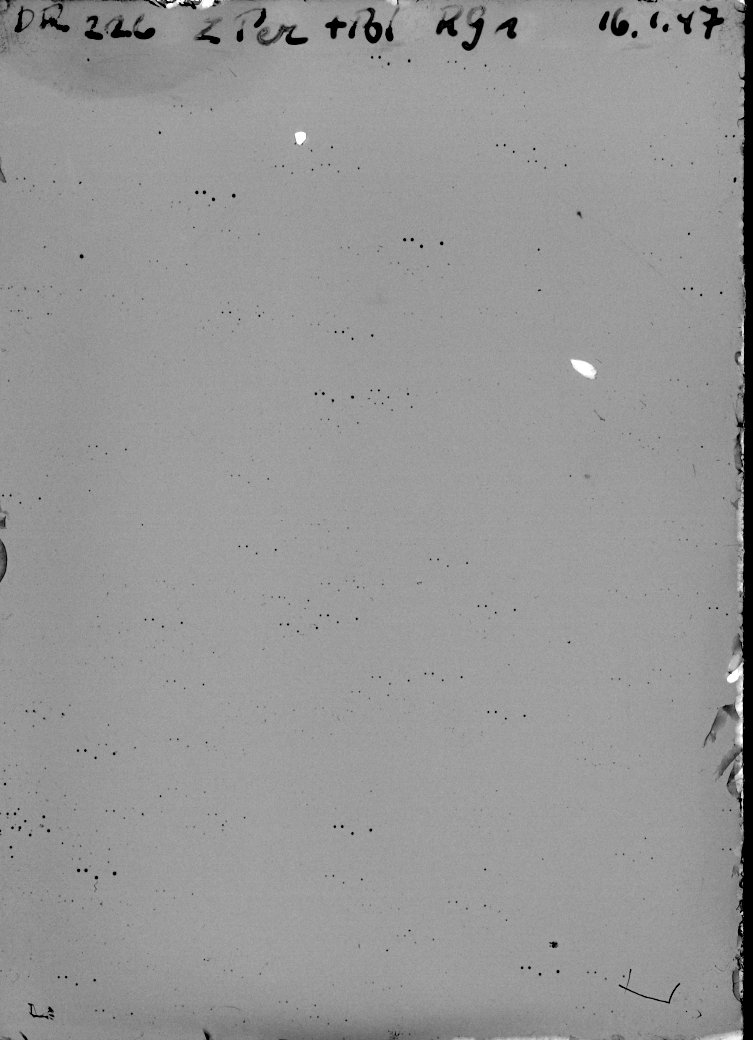

Preview
Envelope
(link)
| Applause ID: | dr.3/plates/107_62382 |
| Archive: | Doppel-Reflektor (Hamburg) |
| Plate number in archive: | DR00226 |
| Institute: | Hamburger Sternwarte |
| Observer name: | Becker (1945-??) |
| Observer notes: | |
| Miscellaneous notes: | +10+5+5m(+5m Pol)Minimum! |
| Bibcode of related paper: | |
| Plate series: | |
| Dispersion: | |
| Plate development information: | |
| Plate quality: | |
| Plate notes: | |
| Plate format: | 06x09 cm |
| Emulsion: | Agfa spektral rot rapid |
| Original recorded date: | 1947-01-16 |
| Number of exposures: | 5 |
| Observatory name: | Hamburger Sternwarte |
| Observatory site name: | Hamburg-Bergedorf; Germany |
| East longitude of the observing site: | 10.242 deg |
| Latitude of the observing site: | 53.482 deg |
| Elevation of the observatory site: | 41.0 m |
| Clear aperture of the telescope: | 0.6 m |
| Focal length of the telescope: | 3.0 m |
| Plate scale of the telescope: | 69.0 arcsec/mm |
| Instrument name: | |
| Observation filter: | RG1(=610) |
| Observation method code (following WFPDB): | |
| Observation prism used: | |
| Used grating: | |
| Air temperature: | |
| Calmness (seeing conditions): | |
| Sharpness: | |
| Transparency: | |
| Notes on sky conditions: |
| Filename scan: | DR00226_y.fits |
| Header file (DR3): | DR00226_y.hdr |
| Length of data axis 1: | 8456 |
| Length of data axis 2: | 6110 |
| Min. value in the image: | 7710 |
| Max. value in the image: | 65535 |
| Scanner name: | Epson Expression 10000XL |
| Scanner software: | |
| Scanner gamma value: | |
| Scanner focus: | |
| Resolution of axis 1: | 2400 dpi |
| Resolution of axis 2: | 2400 dpi |
| Pixel size along axis 1: | 10.5833 um |
| Pixel size along axis 2: | 10.5833 um |
| Scan date and time: | April 29, 2013, midnight |
| Author of the scan: | K. Polzin |
| Notes about the scan: | |
| Institute responsible for the scan: | Hamburger Sternwarte (Universitaet Hamburg) |
Digital object identifier
You can use the following DOI to cite this photographic plate in a publication:
License
This photographic plate is published under the CC0 1.0 Universal (CC0 1.0).
